What Do the Numbers on My Glasses Mean? A Complete Guide to Eyeglass Frame Measurements

Have you ever looked inside the arms of your glasses and noticed a group of numbers such as 52-18-140? These numbers are not a product price or prescription strength. They describe the physical size of your eyeglass frames and can help you find another pair with a similar fit.

Glasses may also include model numbers, color codes, material markings, and prescription information. Understanding what these numbers mean can make shopping for eyeglasses online much easier.

What Do the Three Numbers on Glasses Mean?

The most common numbers printed inside eyeglass frames represent three measurements:

• Lens width
• Bridge width
• Temple length

For example, a frame marked 52-18-140 has:

• A lens width of 52 millimeters
• A bridge width of 18 millimeters
• A temple length of 140 millimeters

All three measurements are normally listed in millimeters. Depending on the frame, the numbers may be separated by dashes, spaces, or a small square symbol.

1. Lens Width

The first number is usually the lens width. It measures the horizontal width of one lens at its widest point.

In the example 52-18-140, the lens width is 52 millimeters.

Lens width affects both the fit and overall appearance of the glasses. Smaller lens widths generally suit narrower faces, while larger measurements may provide a better fit for wider faces or oversized frame styles.

Common adult lens widths are approximately:

• Small: Below 49 mm
• Medium: 49–54 mm
• Large: 55 mm and above

These ranges are only general guidelines. Frame shape, bridge design, and overall frame width can also affect how a pair of glasses fits.

2. Bridge Width

The second number is the bridge width. It measures the distance between the two lenses where the frame rests across your nose.

In 52-18-140, the bridge width is 18 millimeters.

The bridge measurement is important for comfort and stability. A bridge that is too narrow may pinch the sides of your nose, while one that is too wide may cause your glasses to slide down.

However, the same bridge measurement may fit differently depending on the frame design. Keyhole bridges, saddle bridges, adjustable nose pads, and molded acetate bridges all sit differently on the nose.

3. Temple Length

The third number is the temple length, sometimes called the arm length. It measures the side of the glasses from the hinge toward the end of the temple tip.

In 52-18-140, the temple length is 140 millimeters.

Common temple lengths include:

• 135 mm
• 140 mm
• 145 mm
• 150 mm

If the temples are too short, the glasses may feel tight or pull against your ears. If they are too long, the frames may feel loose or slide forward.

Where Can I Find the Size Numbers on My Glasses?

Frame measurements are normally printed or engraved inside one of the temple arms. In some cases, they may appear:

• Inside the left temple arm
• Inside the right temple arm
• Across the inside of the bridge
• Near the frame hinge

The markings may be small, especially on thin metal or titanium frames. If they are difficult to read, try viewing them under bright light or using your phone camera to zoom in.

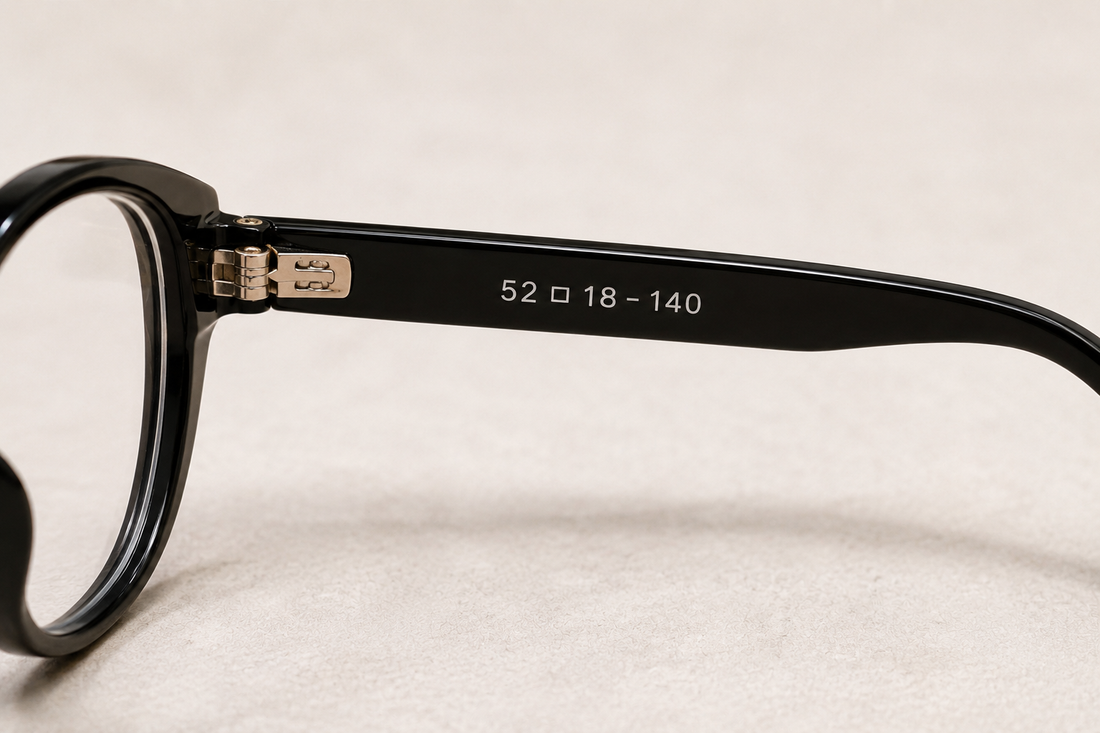

What Does the Small Square Between the Numbers Mean?

You may see a small square symbol between the first and second numbers, such as:

52□18-140

This square is called the boxing symbol. It separates the lens width from the bridge width. It does not represent an additional measurement.

What Do Other Numbers and Letters Inside Glasses Mean?

Not every marking inside your glasses is related to frame size. You may also see model names, color codes, material information, manufacturing details, or certification markings.

Model Number

The model number identifies the specific frame design. It may contain letters, numbers, or a combination of both, such as DTL002 or PB8012.

This number can help you locate the same frame again or contact the seller about a replacement.

Color Code

A marking such as C1, C2, or COL.03 usually identifies the frame color.

For example, the same eyeglass model may be offered in black, tortoise, silver, clear, or several other colors. Each version may have a different color code.

Material Markings

Some frames include markings that identify the material used. Common examples include:

• Titanium or Ti
• Beta Titanium
• Stainless Steel
• Acetate
• TR90

Material markings may help you understand the frame's weight, flexibility, durability, and care requirements.

Brand or Manufacturer Name

The brand name may also be printed inside the temple. On some frames, one arm contains the brand and model information while the other contains the size and color code.

Do the Numbers on My Frames Show My Prescription?

No. The numbers printed inside your eyeglass frames usually do not show your prescription.

Your prescription is normally provided separately by your eye doctor or optometrist. It may include abbreviations and numbers such as:

• OD: Right eye
• OS: Left eye
• SPH: Sphere power
• CYL: Cylinder power for astigmatism
• AXIS: The orientation of astigmatism correction
• ADD: Additional near-vision power
• PD: Pupillary distance
• Prism: Correction for certain eye-alignment conditions

Frame measurements describe the size of the glasses, while prescription numbers describe the lenses needed to correct your vision.

What Does PD Mean?

PD stands for pupillary distance. It measures the distance between the centers of your pupils, usually in millimeters.

PD is not normally printed on the frame. It is used when making prescription lenses so the optical center of each lens can be positioned correctly in front of your eyes.

You may have one total PD measurement, such as 62 mm, or two monocular measurements, such as 31 mm for the right eye and 31 mm for the left eye.

Can I Use My Current Frame Numbers to Buy New Glasses?

Yes. Checking the numbers on a comfortable pair of glasses is one of the easiest ways to estimate what frame size may work for you.

For example, if your current glasses are marked 51-18-140 and fit well, you can look for new frames with similar measurements.

The measurements do not need to be exactly the same. A difference of one or two millimeters is often minor, but the frame's shape, material, hinge design, and overall width can still change the fit.

Why Can Two Frames With the Same Measurements Fit Differently?

Frame measurements are helpful, but they do not tell the entire story. Two pairs marked 52-18-140 can still feel different because of:

• Overall frame width
• Lens shape
• Frame thickness
• Bridge design
• Temple position
• Spring hinges
• Adjustable nose pads
• Frame curvature

For this reason, you should compare both the listed measurements and the overall frame dimensions whenever possible.

What Is Total Frame Width?

Total frame width measures the entire front of the glasses from one outer edge to the other. It is often one of the most useful measurements for determining whether a frame will suit a narrow, medium, or wide face.

However, total width is not always printed inside the glasses. Many eyewear stores list it separately on the product page.

Do not assume that adding the two lens widths and bridge width will give you the exact total frame width. The calculation does not include the frame rims, hinges, or outer edges.

What Is Lens Height?

Lens height measures the lens vertically from top to bottom. Like total frame width, it is usually listed on the product page rather than printed inside the frame.

Lens height can be especially important for:

• Progressive lenses
• Bifocal lenses
• Oversized glasses
• Small or shallow frame styles

Progressive lenses need enough vertical space to provide usable distance, intermediate, and near-vision areas.

What If the Numbers Have Rubbed Off?

Frame markings can fade over time. If you can no longer read them, you can measure the glasses yourself using a millimeter ruler.

Measure:

1. One lens horizontally at its widest point
2. The bridge between the lenses
3. The temple arm from the hinge to the end
4. The total width across the front of the frame
5. The vertical height of one lens

For the most accurate result, keep the ruler straight and measure in millimeters.

How to Choose the Right Glasses Size Online

Before ordering glasses online, compare the product measurements with a pair you already own and find comfortable.

Pay particular attention to:

• Lens width
• Bridge width
• Temple length
• Total frame width
• Lens height

You should also consider whether your current glasses feel too narrow, too wide, too tight behind the ears, or loose on the nose. This can help you decide whether to choose slightly larger or smaller measurements.

Frequently Asked Questions

What does 52-18-140 mean on glasses?

It means the frame has a 52 mm lens width, an 18 mm bridge width, and 140 mm temple arms.

Are glasses measurements always listed in the same order?

Most frames list lens width first, bridge width second, and temple length third. However, the placement and formatting can vary between manufacturers.

Is a higher number a stronger prescription?

Not when the number is printed inside the frame. Frame numbers describe physical measurements or product information, not lens strength.

What is the most important glasses measurement?

Total frame width is especially helpful for overall fit, while bridge width affects how the glasses sit on your nose. Lens width and temple length are also important, so it is best to consider all measurements together.

Can I order the same size in a different frame shape?

Yes, but the fit may not feel identical. A round frame and a rectangular frame with the same printed measurements can have different overall widths and proportions.

Final Thoughts

The numbers inside your glasses provide useful information about frame size, model, color, and material. The most common three-number sequence represents the lens width, bridge width, and temple length.

Understanding these measurements can help you compare frames, replace a comfortable pair, and shop for new glasses online with greater confidence. When choosing your next pair from Youtop Optical, review the full product measurements rather than relying on only one number, since frame shape and construction can also affect the final fit.
